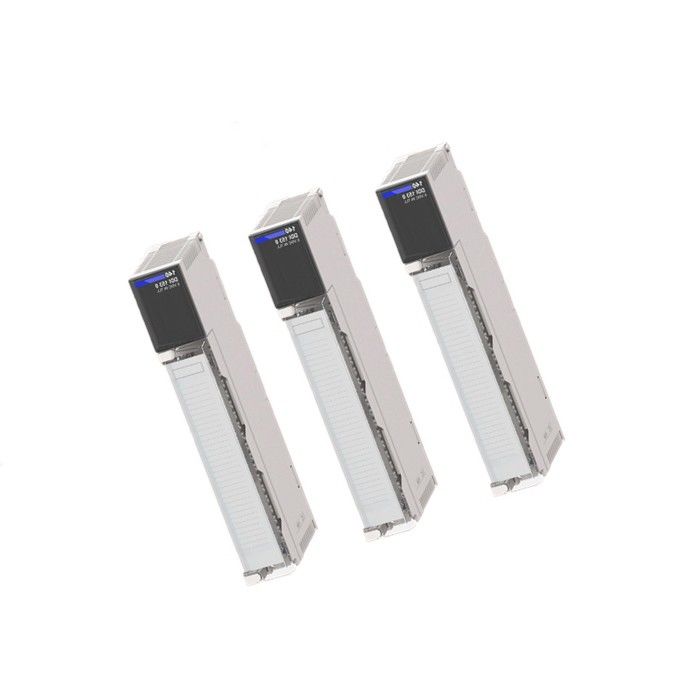

140DRC83000 Schneider PLC Logic Controller Module 140DRC83000 Compatible With Vijeo Designer

140DRC83000 Schneider PLC Logic Controller Module 140DRC83000 Compatible With Vijeo Designer

Products - Schneider PLC
  • Warranty
    12 Months
  • Lead Time
    In Stock
  • Shipping Term
    DHL/TNT/UPS/EMS/FEDEX
  • Number Of Outputs
    10
  • Module
    140DRC83000
  • Software Compatibility
    Unity Pro, SoMachine, Vijeo Designer
  • Operating Temperature
    0-60°C
  • Packing
    Carton
  • Place of Origin
    France
  • Brand Name
    Schneider
  • Model Number
    140DRC83000
  • Minimum Order Quantity
    1
  • Supply Ability
    99+

140DRC83000 Schneider PLC Logic Controller Module 140DRC83000 Compatible With Vijeo Designer

  • 140DRC83000 Schneider PLC Logic Controller Module 140DRC83000 Compatible With Vijeo Designer
  • 140DRC83000 Schneider PLC Logic Controller Module 140DRC83000 Compatible With Vijeo Designer
Get Price Contact Now
Product Description of 140DRC83000
The 140DRC83000 is a high-performance discrete output module specifically designed for industrial automation control systems, developed to meet the rigorous demands of modern manufacturing, process control, and critical infrastructure applications. As a key component in Schneider Electric’s Modicon Quantum series, this module integrates advanced technology, reliable performance, and flexible configuration to ensure seamless integration with existing control architectures and deliver consistent, precise output control.

Core Function & Technical Specifications

At its core, the 140DRC83000 serves as a bridge between the central controller and field devices, converting digital control signals from the PLC into actionable commands for external equipment such as motors, valves, solenoids, and indicators. Its technical specifications are tailored to support heavy-duty industrial environments:
  • Output Configuration: Features 16 discrete outputs, each capable of independent control to support multi-device operation.
  • Voltage & Current Ratings: Designed for 24V DC operation, with a maximum output current of 2A per channel (and a total module current rating of 16A) — ideal for driving medium-power industrial components without the need for additional amplifiers.
  • Response Time: Boasts a fast output response time of less than 1ms, ensuring real-time synchronization with dynamic control processes (e.g., high-speed assembly lines or precision dosing systems).
  • Protection Mechanisms: Equipped with built-in overcurrent protection, short-circuit protection, and reverse polarity protection to prevent module damage from electrical faults, extending service life and reducing downtime.

Key Features & Advantages

The 140DRC83000 stands out in industrial settings due to its user-centric design and robust performance:
  1. Seamless Compatibility: Fully compatible with Modicon Quantum PLC systems, supporting hot-swappable installation. This allows for module replacement or maintenance without shutting down the entire control system, minimizing production interruptions.
  1. Diagnostic Capabilities: Integrates advanced diagnostic functions, including output channel status monitoring and fault indication (via LED lights on the front panel). Operators can quickly identify issues such as open circuits or overloads, streamlining troubleshooting.
  1. Environmental Durability: Built to withstand harsh industrial conditions, with an operating temperature range of -25°C to +70°C (-13°F to +158°F) and resistance to vibration (up to 50Hz) and electromagnetic interference (EMI). It complies with international standards such as IEC 61131-2 and UL 508, ensuring reliability in diverse regions.
  1. Space-Efficient Design: The compact module fits into standard Modicon Quantum racks, optimizing cabinet space utilization — a critical advantage for control rooms with limited layout flexibility.

Application Scenarios

The versatility of the 140DRC83000 makes it suitable for a wide range of industrial sectors:
  • Manufacturing: Used in automotive assembly lines, electronics production, and packaging machinery to control conveyor belts, robotic arms, and sorting mechanisms.
  • Process Control: Ideal for chemical, pharmaceutical, and food & beverage industries, where it regulates valves, pumps, and heating/cooling systems to maintain precise process parameters.
  • Infrastructure: Applied in water treatment plants, power distribution facilities, and oil & gas pipelines to manage critical equipment such as pumps, compressors, and safety shutoff valves.
