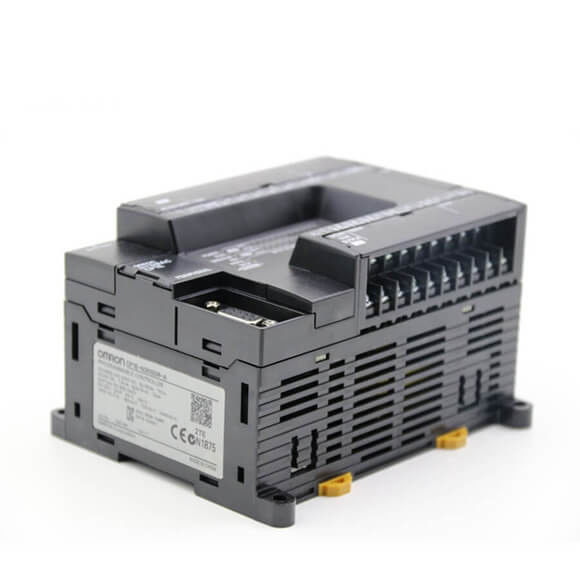

CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller

CP1E-N30SDT-D Omron PLC CPU Unit 8K Steps Programmable Logic Controller

A CPU unit that can be easily operated without the need for referring to a manual.
[Features]
· When you begin typing an instruction using a keyboard, suggested instructions are displayed and the addresses are automatically entered.
· Easy to grasp the overall system simply by looking at the menu, making it easy to operate without referring to a manual.
· The CP1E is equipped with a peripheral (USB) port.
· Support software (computers) can be connected using commercially available USB cables.
· The transistor output type features two 100-kHz pulse outputs for high-precision position control.
· Control multiple axes with one PLC using the two 100-kHz and four 10-kHz, single-phase high-speed counters.
· *The basic models are equipped with six 10-kHz, single-phase high-speed counters.
· Specify inverter speeds via RS-485.

- Power supply voltage: 24VDC
- Number of inputs: 18
- Number of outputs: 12, Transistor sinking
- Interrupt inputs: 6 inputs (pulse width 50µs min.)
- Fast acting inputs: 6 inputs (pulse width 50µs min.)
- Machine memory: 8k steps, 8k words
- Number of timers: 256
- Equipped with USB 2.0 port
- Can add more modules: RS-232 / 485 / 422
